Key attributes
| function | Voip, FireWall, VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | WiFi 802.11 ax | application | Multi-service |
| type | Wireless | 5G Wi-Fi Transmission Rate | 2167Mbps |
| 2.4g wi-fi transmission rate | 1200 Mbps | max. lan data rate | 1900Mbps |
| Supports WPS | Yes | Supports WDS | Yes |
| lan ports | 3 | WAN Ports | 1 |
| with modem function | Yes | Encryption Type | WPA2-PSK, WPA2, WPA-PSK |
| private mold | No | standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11ax |
| products status | New | place of origin | Ireland |
| Model | D50 | Product Type | Mesh router/cpe router |
| 5G SA Su6-6 date rate(Max) | DL 2.1 Gbps; UL 450 Mbps | Network | 5G, NR, NSA/SA, 4G cat16 WI-FI 6 AX5400 |
| 5G NSA Sub-6 data rate(Max) | DL 2.5 Gbps; UL 650 Mbps | LTE speed | DL 1.0Gbps, UL200Mbps |
| Operation Mode | Bridge/Route | ||
Frequency Bands
5G NR
3GPP Release 15 NSA/SA operation, Sub-6 GHz
5G NR NSA
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5G NR SA
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
MIMO
DL: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79
UL: 2 × 2 MIMO on n41
LTE Category
DL Cat 16/ UL Cat 18
4G LTE-FDD
B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
4G LTE-TDD
B34/B38/B39/B40/B41/B42/B43/B48
LAA
B46 (only support 2 × 2 MIMO)
MIMO
DL: 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
UMTS WCDMA
B1/B2/B3/B4/B5/B6/B8/B19
Data Range
NSA: 2.5Gbps (DL)/650Mbps (UL)
SA: 2.1Gbps (DL)/450Mbps (UL)
CAT16: LTE-FDD 1.0Gbps (DL)/200Mbps (UL)
Wireless LAN
Support 802.11 a/ b/g/n /ac/ax standard20/40/80/160 MHz bandwidth
Channel adaption
WPS: PBC/PIN modes
WPA/WPA2/WPA3 security
DL MU-MIMO & OFDMA
Beamforming
Wi-Fi Mesh
Wi-Fi Son
One button pairing
Wi-Fi Antennas
Internal 2*2 2.4GHz 8 4*4 5GHz antennas
Gain: 3dBi
5G NR/LTE Antennas
Internal: 4*4 5G/LTE antennas
5G NR/LTE Antennas
LB: 2dBi
MHB: 4dBi
External TS-9 port
Wireless Module
Auto/Manual network search
Network Protocols and Features
Connection modes: PPPoE/DHCP/Static
IPv4,IPv6,IPv4/IPv6
DHCP v4/v6 server
Static(v4/v6)routing
NAT/ALG/DMZ/virtual server
ARP/ICMP/DNS proxy
IGMP snooping and lGMP proxy
MLD snooping and MLD proxy*
NTP
VLAN
VPN: PPTP L2TP/IPSec

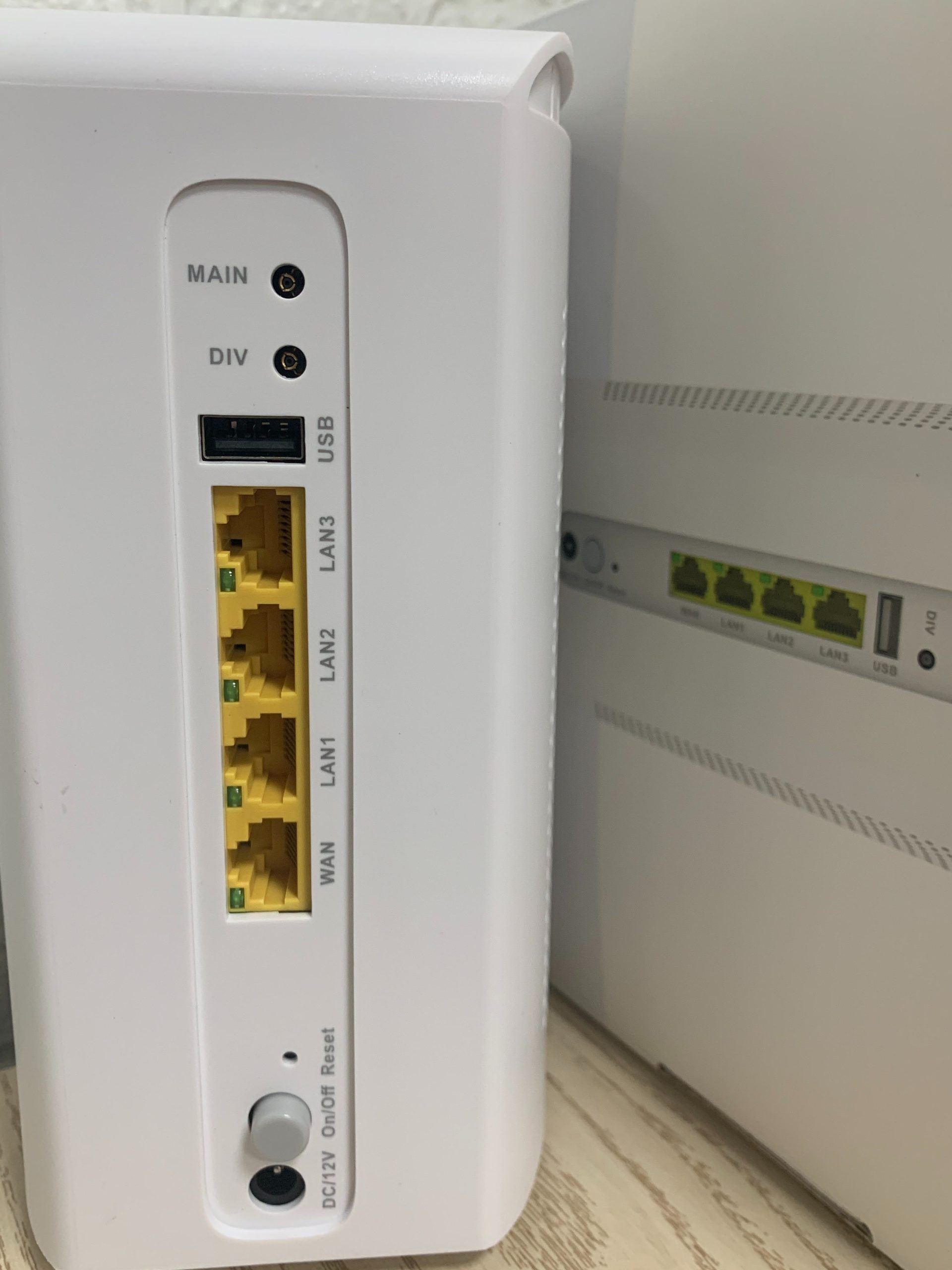

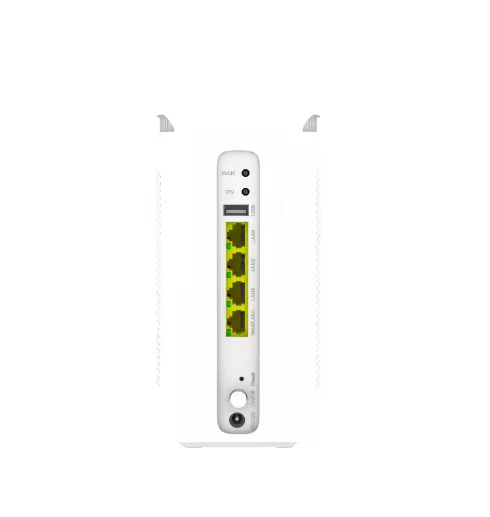

Physical Interface
1x USB 2 .0
1x WAN port
3x LAN ports
1 x SlM slot
12V Port
FAQ
1. who are we?
We are based in Hunan, China, start from 2020,sell to North America(30.00%),Mid East(20.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4G CPE Router, 4G MIFI Router, 4G WIFI Router, 5G CPE Router, 5G MIFI Router
4. why should you buy from us not from other suppliers?
We have industry-leading R & D laboratory, advanced experimental equipment and testing environment, modern production equipment, large-scale production base and strong product production and supply capacity.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
